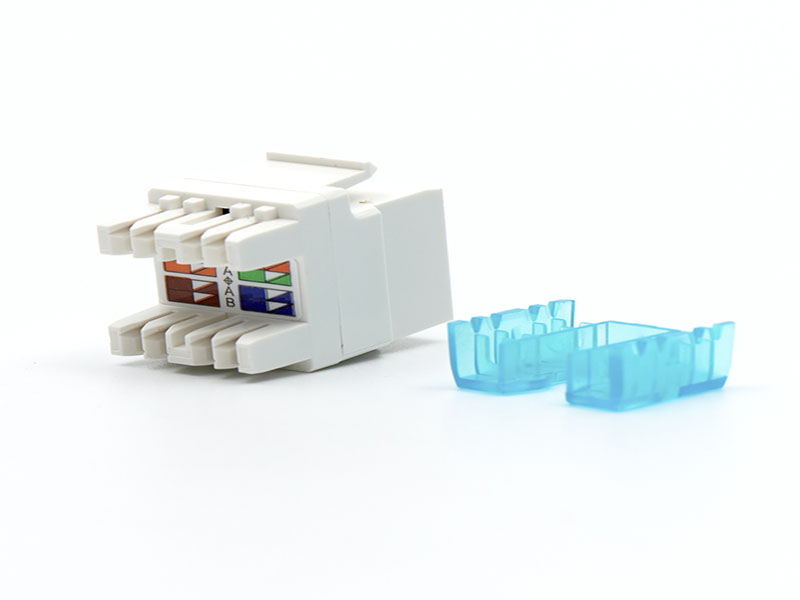

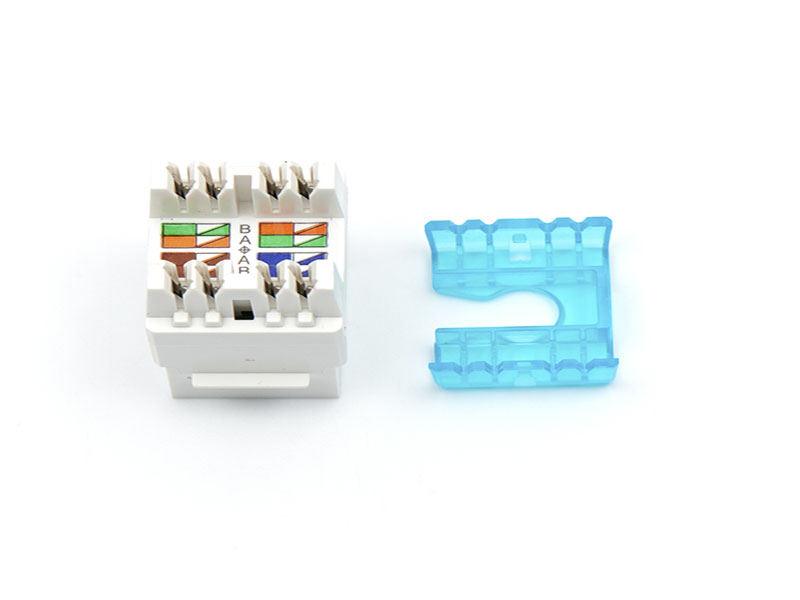

Cat5e unshielded network module MG-RAU500
Brand Name:KOLORAPUS
Sample: available
unit price<=$15 ,free sample and need to pay the freight.
unit price >$15,need to pay the double sample fee and freight.
MOQ：>=$7000
Origin：China
Certification:ISO/3C/CE/ROHS/UL
Package: bag
Payment Method:T/T
Product description:
1) The Card Slot Is Oriented At 45 Degrees To The Alignment, Making Construction Easier And Performance Better.
2) Each Pair Of Slotted Wires Has A Convex Point Mechanism In The Middle, So That The Wires Can Be Separated And Stuck Into The Slot Without Separating The Head Pair, Thus Effectively Controlling The Length Of The Open Strand Without Destroying The Stranding Distance.
3) Product Complies With ANSI/TIA-568-C.2 Standard For Permanent Link And Channel And Provides Third Party Inspection Report.
Specification:
| Standard | Yd/T 926.3, Iso/Iec 11801, Ansi/ Tia-568-C.2 |
| IDC Material | Phosphor Bronze |
| golden needle material | Phosphor Bronze With Gold Plated Surface |
| Dustproof Cover Material | Transparent PC |
| Plug And Socket Insertion Times | ≥1000 Times |
| Number Of Wire Terminations | ≥250 Times |
| Wiring Method | 568A/568B |
| Snap Conductor Wire Diameter | 0.5mm ~ 0.65mm, 24AWG ~ 22AWG |
| Maximum Transmission Frequency | 100mhz |
| Rated Current | 1.5A (20℃) |
| Operating Ambient Temperature | -10℃～+60℃ |
Order information:
| Product name | Description | Model id | Packaging Method |
| Cat6A unshielded module(Free type) | 180 degree free type | MGS-BUC6A | bag |

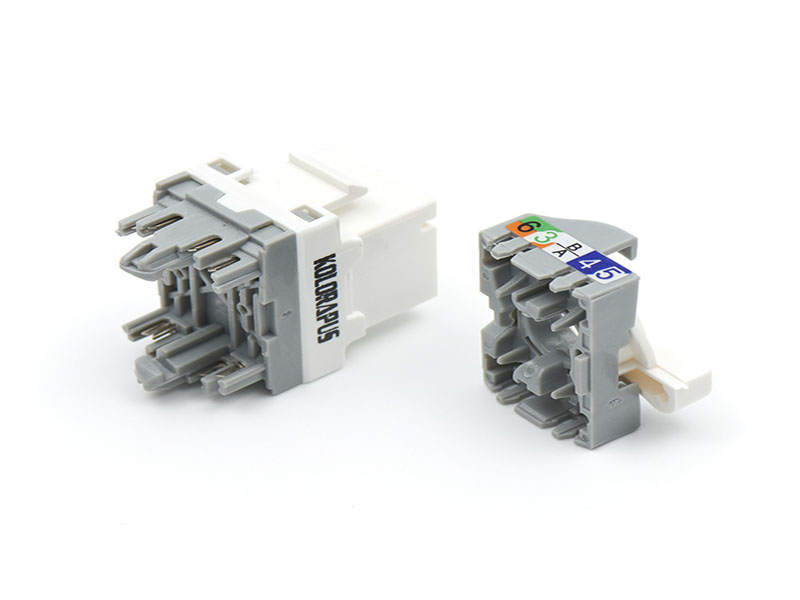

| Cat6 unshielded modules（Wire type） | 180 degree wiring module | MGS-BUC6 | bag |
| Cat6 unshielded modules(Free type) | 180 degree free type | MGS-MUC6 | bag |

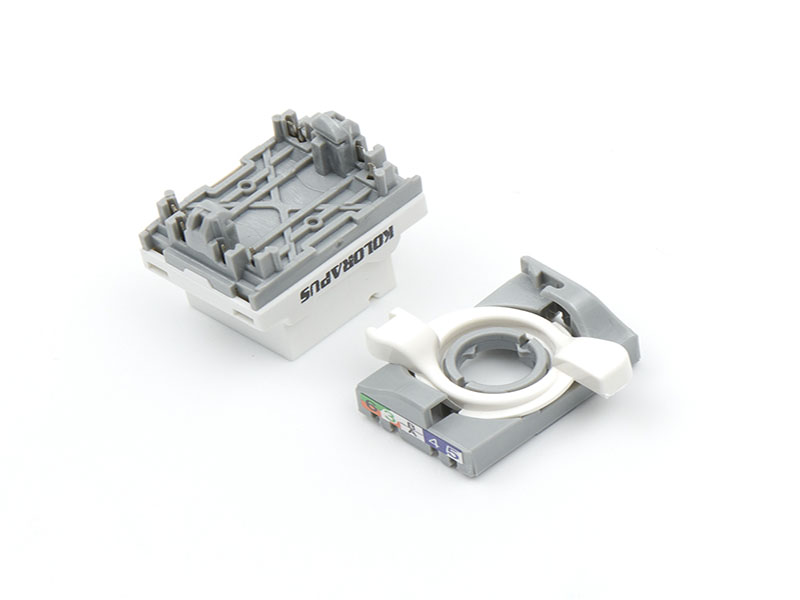

| Cat5e unshielded module (rotary type) | 180 degree rotary type | MG-MU500 | bag |
| Cat5e unshielded module (180 degrees) | 180 degree wiring module | MG-BU500 | bag |
