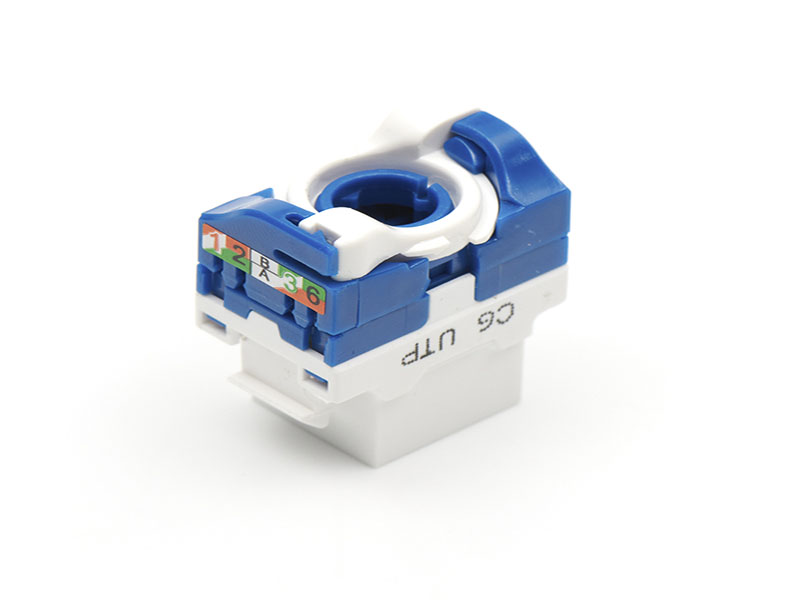

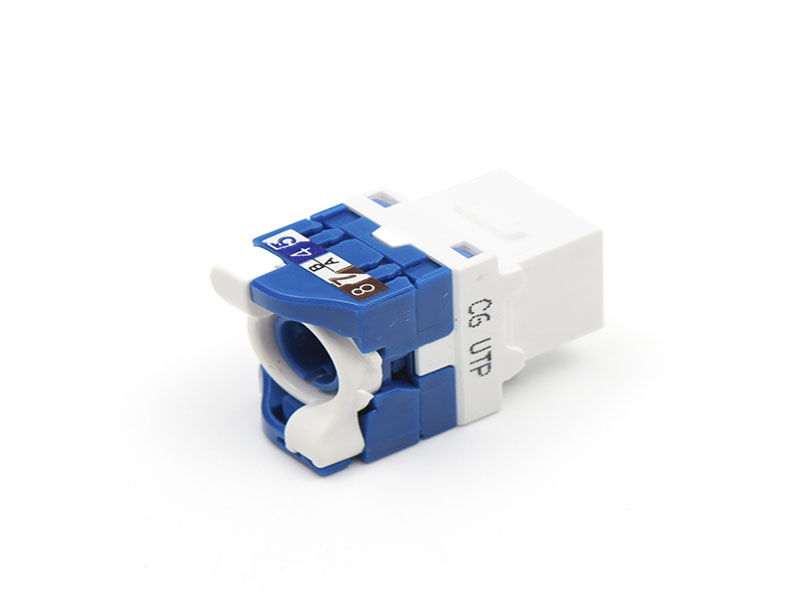

Cat6 unshielded network module（rotary） MGS-BUC6
Brand Name:KOLORAPUS
Sample: available
unit price<=$15 ,free sample and need to pay the freight.
unit price >$15,need to pay the double sample fee and freight.
MOQ：>=$7000
Origin：China
Certification:ISO/3C/CE/ROHS/UL
Package: bag
Payment Method:T/T
Product Description
Product description:
1) 180 Degree Design Can Be Mounted On The Panel Or On Top Of The Wiring Closet.
2) IDC With 45 Degree Self-Locking Structure Crossover Design.
3) Product Complies With ANSI/TIA-568-C.2 Standard For Channel Six Nodes And Provides Third Party Inspection Report.
Specification:
| Standards | Yd/T 926.3, Iso/Iec 11801 2008; Ansi/ Tia-568-C.2 |
| IDC Material | Phosphor Bronze |
| Gold Pin | Gold Plated Phosphor Bronze Surface, Shaped Gold Pin Space Arrangement, Effectively Enhance The Near-End Crosstalk Margin |
| Dust Cover | Transparent PC Material |
| Plug And Socket Insertion Times | ≥1000 Times |
| Number Of Wire Terminations | ≥250 Times |
| Wiring Method | 568A/568B |
| Snap Conductor Wire Diameter | 0.5mm ~ 0.65mm, 24AWG ~ 22AWG |
| Maximum Transmission Frequency | 250mhz |
| Rated Current | 1.5A (20℃) |
| Operating Ambient Temperature | -10℃～+60℃ |
Order information:
| Product name | Description | Model id | Packaging Method |
| Cat6A unshielded module(Free type) | 180 degree free type | MGS-BUC6A | bag |
| Cat6 unshielded modules（Wire type） | 180 degree wiring module | MGS-BUC6 | bag |
| Cat6 unshielded modules(Free type) | 180 degree free type | MGS-MUC6 | bag |
| Cat5e unshielded module (rotary type) | 180 degree rotary type | MG-MU500 | bag |
| Cat5e unshielded module (180 degrees) | 180 degree wiring module | MG-BU500 | bag |
